New Genius Touch MAP updated version of Kess v2

KESS V2 got error "Connections not established" when I prepare to install ksuite, shown as follows.

Possible reason:
1) Computer system is incompatible
2) Network connection
3) Software file is destroyed, need to reinstall.
Solution:
  • Computer system requirement (OS): Better install ksuite on windows XP 32bit, we supply the perfect version for you at:
Why the user is supposed to install ksuite on XP pro, take kess v2 fw4.036 for example, before install it, you need to install Microsoft C++2005, if you change other XP system, C++ may be not 2015 version and lead ksuite fw4.036 not successfully installed.
Some user tested ksuite okay on Win 7 32bit, download at:
2) Network connection: Do not connect to the network connection, otherwise ksuite may be locked.
3) Reinstall ksuite (Please note: in the CD, there are one video demo for instruction)
Installation procedure:
1)open ksuite.sfx in the CD


2) open "Driver_USBDEVICEDRV..." and install USBDEVICEDRV

3) Cut Ksuite folder in C:\disk (Now we call it old Ksuite folder)

4) Delete Ksuite.exe

5) Paste Ksuite folder to desktop

6) Download K-tag setup installation software to laptop, and run it, it will generate another "Ksuite"  folder on Disk C, we call it new Ksuita folder)

7) Delete "K-tag setup installation software" and "Setup" icon on the desktop
kess connection not established-08
8) Right click "K-suite" icon on the desktop and click "Find Target" to open new Ksuite folder.

9) Copy all files in old Ksuite folder and Paste them all to the new Ksuite folder in C:\ Ksuite.


2015年12月16日星期三

Why Ktag / Kess checksums error and how to prevent it happens

Some users feedback they have a same problem with Ktag and/or Kess v2 Master checksums error eg. the units will not calculate checksums when loading files. And this error happens on both Chinese clone Ktag/Kess and EU clone ones.
Then why Ktag / Kess checksums error and how to prevent it happens?
At first, I also have this error, but finally I find out the reason, and I hope I share here to help others.
Let's go!
According to this ECU, you must do a full read and then straight after that you must do a full write. After you've done that, the ECU is open for you to load your tunes based on partial reads and writes. The reason for the full read and full write is that it takes off the tuning protection on the ECU.
I did a full read a month ago, and only did a full write a week ago. Whenever I tried to write the tune file, the ECU would be bricked and come back with a checksum error after the write. So the secret is to do the write directly after the read. I did this with a FGTECH V54 but the process is the same for Kess. I now write my custom tunes with Kess to the ECU, and KSuite corrects the checksums for the partial writes.
The process is different for other ECUs I'd imagine.
2.13V Ktag Master V6.070 Plus V2.15 Kess V2 Unlimited Token V4.036 with Free ECM TITANIUM V1.61 Software:

2015年11月26日星期四

Why I need to buy KESS V2 and Ktag programmer together?

From sally:
KESS V2 Master is a ECU programming tool that is perfect for OBD use, while KTag is perfect for Jtag, BDM and all the Boot application (tricore and ST10).

With KESS V2 you programming directly through the OBD port of the vehicle, while with Ktag (Ktag 2.13) you need to take apart the ECU and open it, after you can make the read/write operation.

Many ECU has the advantage that can be read and write from OBD port (so KESS V2 is perfect), but there are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so KTAG is needed.

2.13V Ktag Master V6.070 Plus V2.15 Kess V2 Unlimited Token V4.036 with Free ECM TITANIUM V1.61 Software:

KESS V2 Ksuite V2.15 Free download& Installation Guide

Recently, KESS V2 software KSuite V2.15 has been released. Here, we obdtool offer software KSUITE 2.15 free download and installation guide. Hope it helps.
Free download KESS V2.15 V2 (software and video guide included):
Compatible device:
Steps:
  1. Disable network connections
  2. Install WinRAR 3.62
III. Install K-suite 2.12
  1. Install software for USB Device
  2. Run KSuite 2.15 for BMW vehicles (BMW F25 & F01)
  1. Disable network connections
Open “My Network Places”>>Network Connections>> Right click each for “disable”, to disable all network connections.
  1. Install WinRAR 3.62
Open “My Computer”>>Ksuite V2.15 (E:)>>wrar362
Click “Install”.
Click “Select all” and then “OK”.

Click “Done”.
Close the automatic interface, the folder “WinRAR”.
III. Install K-suite 2.12
Open “My Computer”>>Ksuite V2.15 (E:)>> Ksuite 2.15, to copy the zip file “Ksuite 2.15” to Desktop.
Then back to Ksuite V2.15 (E:). Open Ksuite v2.12>>setup
Click Next to continue.
Click Install to begin installation of K-suite 2.12.
Installing...
Click Yes for the license agreement.
Driver USBDEVICEDRV(1.00.011) Installation
Select language and click OK.
Click Next to continue.
Click Next.
Click Next.
Installing...
Click Finish.
Prompt “Connection not establish”; click OK.
Close KESS V2 2.12 interface.
Right click the zip file “Ksuite 2.15” on Desktop, to “Extract to Ksuite 2.15”.
Open the extracted folder “Ksuite 2.15” on Desktop, to copy all the files&folders.
Right click “K-Suite” for “Properties”.
Click Find Target...
Delete all files and folder in “C:\KSsuite”.
Then right click for “Paste”.
Close K-Suite Properties interface.
Copy the folder “help” from “Ksuite V2.15 (E:)” to “C:\KSsuite”.
Delete zip file KSuite 2.15 and folder KSuite 2.15 on Desktop.
  1. Install software for USB Device
Click Next with the selection of “Install the software automatically (Recommended)”.
Click Finish.
Right click “My Computer” for “Manage”.
Select Device Manager>> Universal Serial Bus controllers>> USB Device.
  1. Run KSuite 2.15 for BMW vehicles (BMW F25 & F01)
Open K-Suite on Desktop.
Select Info to read. Then Exit.
Select the first icon, with car.

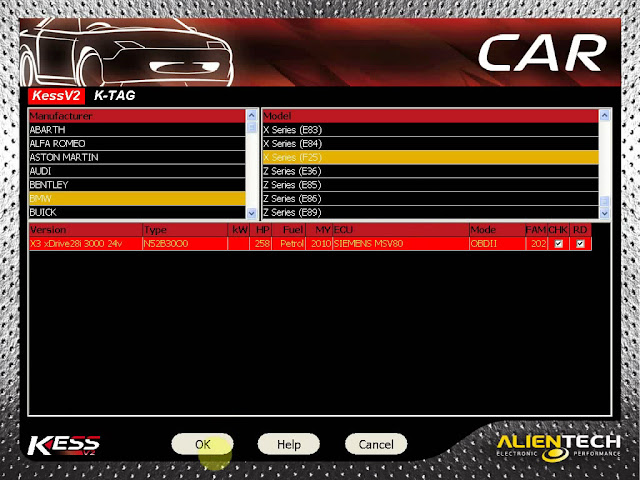

Select Manufacturer: BMW, Model: X Series (F25), and the Version line.
Family 202: click OK.
Select CAN.
Select ID.
Connect your vehicle to a stablized battery charger in order to use this Serial Protocol. Click OK.
Switch on the dash-board, check the connections. Click OK.
Switch off the dash-board to continue. Click OK.
Connect your vehicle to a stablized battery charger in order to use this Serial Protocol. Click OK.
Switch on the dash-board, check the connections. Click OK.
Click OK.
Save as “bmw” on Desktop.
Switch off the dash-board to continue. Click OK.
Select READING.
Connect your vehicle to a stablized battery charger in order to use this Serial Protocol. Click OK.
Switch on the dash-board, check the connections. Click OK.
Switch off the dash-board to continue. Click OK.
Connect your vehicle to a stablized battery charger in order to use this Serial Protocol. Click OK.
Switch on the dash-board, check the connections. Click OK.
Click OK.
Click OK to proceed to read.
Reading ECU...
Save as “f25” on Desktop.
Switch off the dash-board to continue. Click OK.
Click OK for completing reading ECU.
Click Back.
Click Cancel.
Select the first icon, with car.
Do the selection as follows: Manufacturer: BMW, Model: 7 Series (F01)... Then click OK.
Scroll down to get connection instructions. Then click OK.
Select BOSCH EDC17 CP02 BMW (P154). Then click Cancel.
Click Cancel.
Close the interface

2015年10月11日星期日

KESS V2 K-suite V2.15 firmware 4.036 Free Download

China clone Alientech KESS V2 Master firmware V4.036 ECU tuning kit K-suite master version software has updated to new V2.15 with no token limitation. New K-suite V2.15 software can be free downloaded here:
KESS V2 OBD2 tuning kit vehicle list
Software version: K-suite V2.15
Firmware version: V4.036 (SE87-CSE87-D)/ fit firmware 3.099 also(SE87SE87-B)
kess-v2-v2.15
kess-v2-2-10-cable-connection-2
Top features:
  1. No token limitation
2.  No Checksum Error
  1. Multi-Languages: English, Spanish, Italian, French, German, Portuguese
kess-v2-language
4. Operating system: Windows XP/Windows 7
Newest clone Kess V2 2.15 with 4.036 Firmware K-suite 2.15 Master version add new protocols:
VAG Bosch EDC17C74 TC1793
KESSv2 - Car - 510
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300KCAN
Iveco Truck Bosch EDC17CV41
KESSv2 - Truck - 509
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K208
Cummins Ford Truck Continental CM 2220C
KESSv2 - Truck - 511
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K235
Cummins Generic Truck Continental CM2220
KESSv2 - Truck - 513
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K236
Cummins Agrale Truck Continental CM2220
KESSv2 - Truck - 515
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K236
Cummins Volkswagen Truck Continental CM2220
KESSv2 - Truck - 516
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K236
Case Tractor Bosch EDC17CV41
KESSv2 - Tractor - 512
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K208
Cummins Rostselmash Tractor Motorola CM850
KESSv2 - Tractor - 514
- Read: YES
- Write: YES
- Checksum Correction: YES
- Cable: 144300K226
Using tips:
  1. Please disconnect the network before you install the software or use the device
  2. Please do not update KES V2 online.
  3. Kess v2 can not do truck, only do car and some motorcycle.
4.If some ECU list options are grey, it is normal. KESS V2 will keep update new models. KESS V2 supports tractor till L15, cannot do newer L21, L22, L23 etc.
KESS V2 firmware 4.036 PCB board
kess-v2-fw4.036
How to connect Kess V2 to add tokens(Do not connect it to vehicles):
kess-v2-v2.15
KESS V2 Boot Mode connection diagram
kess-v2-boot-connection
KESS V2 OBD connection diagram
kess-v2-boot-connection-1

2015年9月27日星期日

KESS V2 2.15 firmware 4.036 “No valid token file” (fixed)

KESS V2 Master ECU tuning kit software V2.13 firmware V4.036 “No valid token file” problem & solution is provided here.
Problem:
KESS V2 V2.15 firmware V4.036 has only 9 tokens left. When try to reset token follow the video instruction, he stopped at ecu_tuner v2.4 procedure and the software displays error message:
“No valid token file” (error screenshots)
kess-v2-4.036-token-error-1
kess-v2-4.036-token-error-2
Possible reason:
Did not follow the video guide to rename the token files.
Solution:
First of all, check following:
Did you change a new TF card and format the TF card
Did you connect KESS v2 ecu tuning kit & TF card well
If not, then do it.
Follow the connection diagram to connect kess v2 TF card and laptop
how-to-reset-tokens-for-kess-v2-1
Then follow video to go to this step.
Rename the token file. Follow these steps:
Rename “token47.tok” to “token48.tok”
kess-v2-4.036-token-error-3
Then copy “token48.tok” to “tokens” folder
kess-v2-4.036-token-error-4
There should be only ONE token.tok file on “tokens” folder
kess-v2-4.036-token-error-5
NOTE:
If you fail to rename “token2.tok to token10.tok”, then start from token11.tok, token12.tok, token13.tok…till token100.tok
The maximum is token100.tok. Then you should change another laptop, re-install system to reset tokens from token10.tok
Free download Kess V2 4.036 token reset video, Ksuite-tokens.zip and Kessv2-TF.zip

2015年7月30日星期四

Kess V2 ECU Chip Tuning Tool for Mercedes Benz

I have the iCarsoft i980 to read/delete codes. But I can't do much more than that, and in my opinion it's very buggy, and I'm having problems updating the unit. So I start searching some free/cheap software for Mercedes C200. I would only need the USB-OBD II cable... To play around with settings etc.. Like delete canbus bulb-check for certain lights, program cars behavior and so on.. (if possible).

So I post this to anyone who knows what tools/software that are required to tune the ECU/ chip software.

I also find some knock off star systems on the interwebs between $350-1000 with quality ranging from crap to very good. Yes, the most professional Star diagnosis MB SD C4 with wifi may be the best one among Mercedes STAR diagnostics When I search for it, I find out a professional web of vehicle diagnosis--- www.eobdtool.co.uk. It is full of a variety of diagnostic and other tools for all kinds of vehicles, such as BMW ICOM A2, Key Pro M8 key programmer,etc.

Then I get Mercedes tuning software go for Kess v2, of which is recommend by bros from forums. (Kess v2, FgTech v54 are two of the most popular tuning software in the market. After asking the customer service of obdtoolshop, I decide to buy KESS V2).

Package & purchase:
199 with 5-day delivery, well packed including the main part Kess V2 chip tuning together with some cables, work well so far





kess v2 obd2 ecu chip tuning is very good at checking the battery voltage in real-time, full recovery function in case of problems & scan tool function to remove DTC, automatic correction of the Checksum (where available), boot-loader mode supported, management of the programming counters. Also, you can have several options of reading/writing speed and option to write full file/section of the map. And kess v2 obd2 is the full integration with ECM Titanium,which means it can work with ECM Titanium perfectly.

Ps. software display:



How to reset tokens of KESS V2 V2.15 Master UK ECU Chip Tuning

2.15V KESS V2 unlimited token version with firmware version V4.036 can read and write ECU via OBD2 port directly, ECU picture and connection manual coming with KESS V2 Ksuite software, much easy to use for customers. KESS V2 V2.15 master UK ECU chip tuning with multi-language works for bike and car with coverage of all major brands and protocols including Line, CAN, EDC17 and MED17. Here is the step-by-step instruction to help reset KESS V2 tokens.

1. Open "My Network Places" on the desktop and click "View network connections" on the left menu "Network Tasks".
Disable local area connection and wireless network connection; otherwise, you would get the interface damaged.

Close the interface.

2. Right click "My Computer" on the desktop to select "Manage".
"computer management"> "Device Manger" on the left menu> "PC-201411261510" (scroll down)> "universal serial bus controllers"> "USB device".

Close the interface.

3. Right click the compressed file"Tool" to extract on the desktop.

4. Open the extracted folder "Tool" and move all the three files to the desktop.

5. Cut the compressed file "KSuite_tok..." on the desk and copy it on the Local Disk (C:).

Close the two interfaces.

6. Delete the empty folder "Tool" and the compressed file "Tool" on the desktop.

7. Open "K-Suite" and choose OK in the ATTENZIONE interface and then close the following interface.




8. Re-name "Token1.tok" to "Token47.tok".





And then click "K10033818" and you can get a new compressed file "Kessv2-2.1..." on the desktop.

9. Prepare one 2G TF card and format the card.
NOTE: select "Quick Format"

10. Open the compressed file "Kessv2-2.1..." on the desktop and unzip it to the formatted 2G TF card--- disk (F:).

11.Delete the compressed file "Kessv2-2.1..." on the desktop after unzipping.


12. Re-name "Token47.tok" to "Token48.tok".



13. Copy "Token48.tok" on the desktop to the folder"Tokens".
Close the interface.

14. Open "My Computer"> "Local Disk (D:)", and then delete the folder "KSuite_tokens".

Extract the compressed file "KSuite_tokens" on disk (C:).

15. Open the extracted file "KSuite_tokens" on disk (C:).

16. Rename "K10033818.CFG" to "135K10033818.CFG".

to


17. Cut the renamed "135K10033818.CFG" and paste it on "C:\KSuite_tokens\KSuite\update".

Close the interfaces.

18. Open "K10033818" on the desktop and choose OK to continue.


19. Select KSuite direcory "my computer"> "Local Disk (C:)"> "KSuite_tokens"> "KSuite".
Then reset token count.


20. Choose OK to proceed.

Updating...

21. Select "Info" to read it. And then exit.


Complete resetting KESS V2 V2.15 master UK ECU chip tuning tokens.

NOTE:
Please connect KESS V2 with computer as the following pic shows when you are adding tokens. Do not connect KESS V2 to your vehicle when adding tokens!
